Pipeline overview

The AccuSNV pipeline is a Snakemake workflow with the following overarching steps:

The AccuSNV pipeline stages.

Stage 1: mapping (1-Mapping/)

First, Reads are trimmed using cutadapt, which removes the 3’ adapter (adapter_sequence, Nextera by default), then sickle quality-trims at Q20 and drops anything shorter than 50 bp.

You can then choose your aligner to be either bwa or bowtie2 (bwa by default). The aligner then maps the trimmed reads to the reference for that sample’s group, building the index on the first run if it is not already there. Bwa output is by default piped through samclip --max 0, which throws away any read with a soft-clipped end. Pass --skip_samclip to not do this. bowtie2 does not need this, so samclip is not run for it.

The alignments then are proceed with samtools, which sorts by name, fixes mate information, sorts by coordinate, and removes duplicates with markdup -r. Reads within markdup_optical_distance pixels of each other count as optical duplicates. The SAM and all the intermediate BAMs are deleted once the final sorted BAM exists.

Next, samtools mpileup produces a full pileup, which AccuSNV converts into a per-position matrix holding, for every base of the genome, the number of forward and reverse reads supporting each of A, T, C and G, their average base quality, mapping quality and distance from the read end, and the number of reads supporting an insertion or a deletion nearby.

Next, bcftools mpileup | bcftools call produces a VCF for the whole genome. The FQ score at every position becomes that sample’s call-quality vector. Positions where a single-base substitution was called with FQ below max_fq (default -30) become that sample’s list of candidate variant positions.

Stage 2: SNV filtering (2-SNV-filtering/)

In the second stage, every ingroup sample’s list of candidate positions is merged into one list for the entire group.

Then every sample is genotyped at every one of the candidate positions nominated by any sample. The candidate mutation table holds, per sample and per position, the eight read counts (A, T, C, G on the forward strand, then the same four on the reverse), the call quality, and the indel counts.

Next, both the CNN and WideVariant rule-based filters are run for SNV calling. Every candidate position is scored by the CNN, and through the WideVariant filters, and given a final label, as described in How SNVs are called.

Finally, each passing SNV is annotated using the reference annotations: which gene it is in, where in that gene it is, and what the codon and amino acid changes are. The final SNV calls with annotations are provided in snv_table_final.tsv.

Stage 3: evolutionary analysis (3-Analysis/)

The evolutionary analyses run by default are:

1. dN/dS is computed genome-wide and per gene (dN/dS).

2. dnapars builds a maximum-parsimony tree using passing SNVs (Phylogeny and dMRCA)

3. dMRCA of each sample to the inferred ancestor is calculated, along with the median, minimum and maximum distance to the ancestor across the ingroup.

4. An interactive HTML report is generated for SNV curation and tree viewing.

The neural network

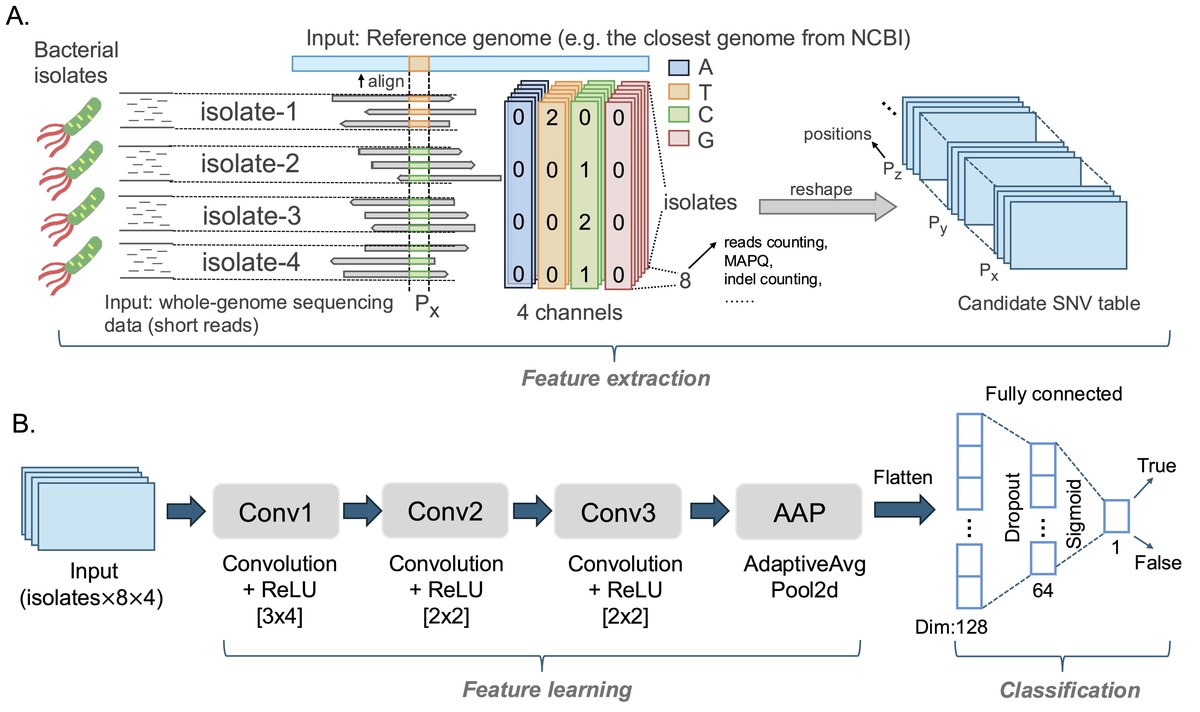

The CNN architecture overview

For a detailed description of the CNN, please read the AccuSNV paper: High-accuracy SNV calling for bacterial isolates using deep learning with AccuSNV, Genome Research, 2026.

All Snakemake rules

The Snakemake rules in order are:

Rule name	Runs per…	It runs:
cutadapt	sample	cutadapt
sickle	sample	sickle
create_mapping_index	reference	bwa index or bowtie2-build
mapping	sample	bwa mem (piped through samclip) or bowtie2
sam2bam	sample	samtools sort, fixmate, markdup, index
samtools_idx	reference	samtools faidx
mpileup2vcf	sample	samtools mpileup, bcftools mpileup/call/view, tabix
vcf2quals	sample	accusnv.preprocessing.vcf2quals_snakemake
variants2positions	sample	accusnv.preprocessing.variants2positions
pileup2diversity	sample	accusnv.preprocessing.pileup2diversity
combine_positions	group	merges the per-sample candidate lists
candidate_mutation_table	group	accusnv.preprocessing.build_candidate_mutation_table
calling_accusnv	group	accusnv.accusnv.accusnv (the CNN and the checks)
annotate_snvs	group	accusnv.downstream.annotate
dnds	group	accusnv.downstream.dnds
build_tree	group	accusnv.downstream.tree_building
report_html	group	accusnv.downstream.generate_dashboard
